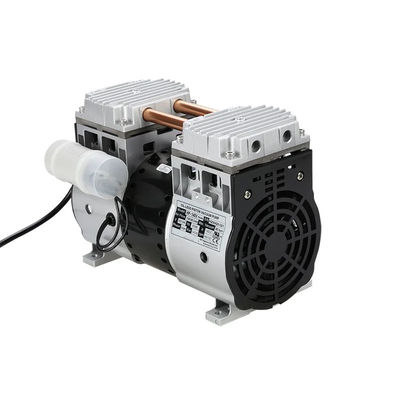

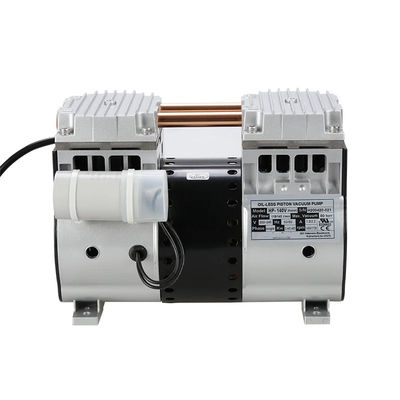

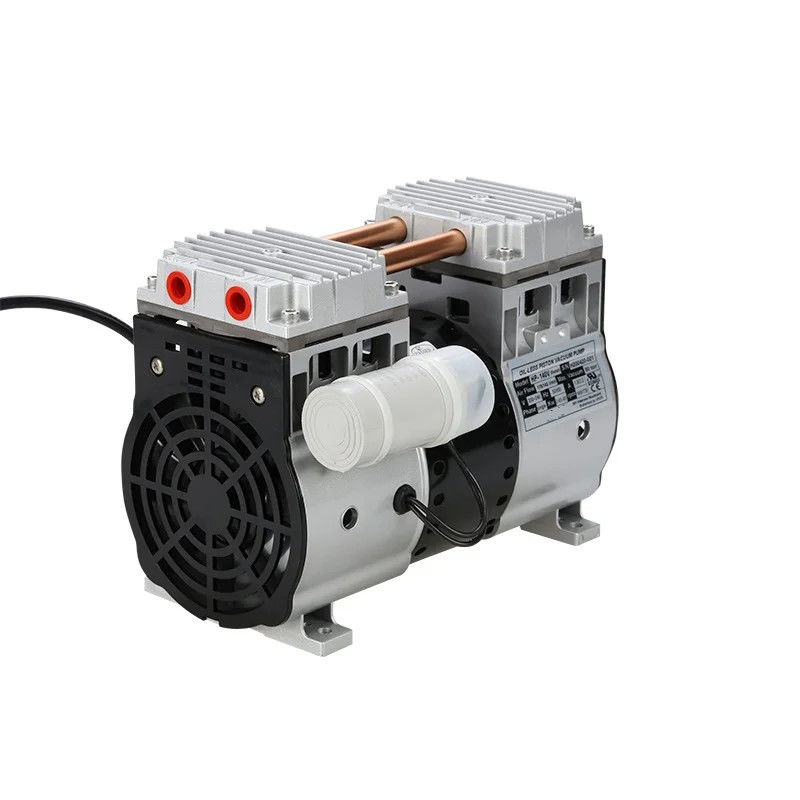

Product Details:
|
| Power: | 0.26Kw/50Hz | Max Flow: | 90L/min |
|---|---|---|---|
| Max Pressure: | -685mmHg | Warranty: | One Year Warranty |
Product Features:
1. Small size, easy to be installed inside the equipment.
2. High efficiency and energy saving.
3. Oil-free and environment friendly
4. Low noise. low-temperature rise, low vibration
5. Outstanding performance at a reasonable price
6. AC 110 V or 220 V
Application:
* Medical suction device
*Dental vacuum ovens
*Surgical suction unit vacuum pump
* Sterilization equipment
* Ear, nose, and throat surgery equipment
Specification:
| MODEL | VOLTAGE | FREQUENCY | POWER | AMPERAGE | PRESSURE | FLOW | NOISE | WEIGHT |
| UNIT | V | Hz | Kw | A | mmHg | L/min | dB | Kg |
| HP-90V | 1Φ | 50 | 0.22 | 2.2 | -685 | 81 | 58 | 8.25 |
| 115V | 60 | 0.27 | 2.6 | -685 | 90 | 58 | ||
| 1Φ | 50 | 0.26 | 1.3 | -685 | 81 | 58 | 8.25 | |
| 220V | 60 | 0.33 | 1.5 | -685 | 90 | 58 |
Applications:
UNIT:mm
| MODEL | A | B | C | D | E | F | G | H | I |
| HP-90V | 148 | 180.5 | 128 | 108 | 244 | 197.5 | Φ7 | 40 | NPT1/4" |
